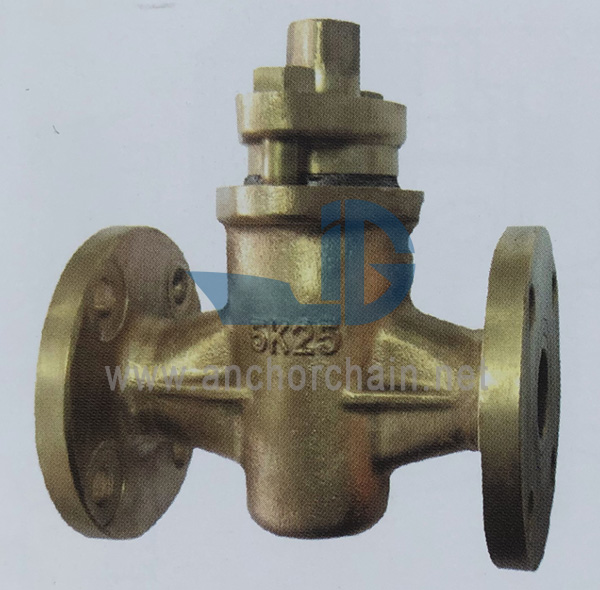

JIS F 7381 Bronze 5K Flange Haner Design Standard: JIS F7387-1996 Test Standard: JIS 7400-1996 Hydraulisk testtryk: DN6 & DN10: Body-30KG, Plug-22KGDN15 & DN20: Body-24KG.6K

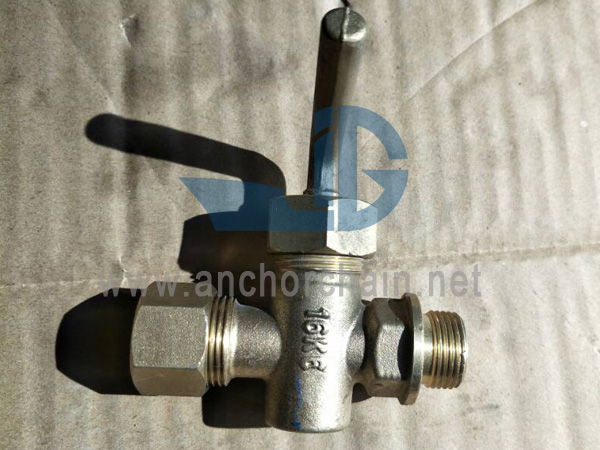

Marine Bronze Hane JIS F7387 U Type 16K
Kategori:JIS Marine hane
Materiale: Bronze
Standarder: JIS F7387
Certifikat: CCS, BV, ABS, GL,LR,DNV, KR, IRS, RINA
IMPA-kode: 751635~751636
Fob-pris: Få den seneste pris nu
Oprindelsessted: Kina
Hovedstørrelsesliste (mm):
| Type | IMPA | Størrelse | Kobberrør udvendig diameter | Stålrør udvendig diameter | L | L1 | L2 | L3 | K | d3 | B2 | H | Vægt (kg) |
| S type | 756131 | 6A | 8 | 10.5 | — | 28 | 28 | 37 | 12 | M12*1,5 | 30 | 65 | 0.46 |
| 756131 | 10 | 10.5 | — | 28 | 28 | 37 | 12 | M12*1,5 | 30 | 65 | 0.46 | ||
| 756132 | 10A | 15 | 17.3 | — | 40 | 40 | 52 | 16 | M24*2 | 41 | 73 | 0.85 | |
| 756133 | 15A | 20 | 21.7 | — | 45 | 45 | 58 | 22 | M30*2 | 46 | 92 | 1.46 | |
| 756134 | 20A | 25 | 27.2 | — | 50 | 50 | 65 | 24 | M36*2 | 50 | 104 | 2.09 | |
| U type | 756135 | 6A | 8 | 10.5 | 56 | — | — | — | — | — | 30 | 65 | 0.5 |
| 756135 | 10 | 10.5 | 56 | — | — | — | — | — | 30 | 65 | 0.5 | ||
| 756136 | 10A | 15 | 17.3 | 80 | — | — | — | — | — | 41 | 73 | 1 |
