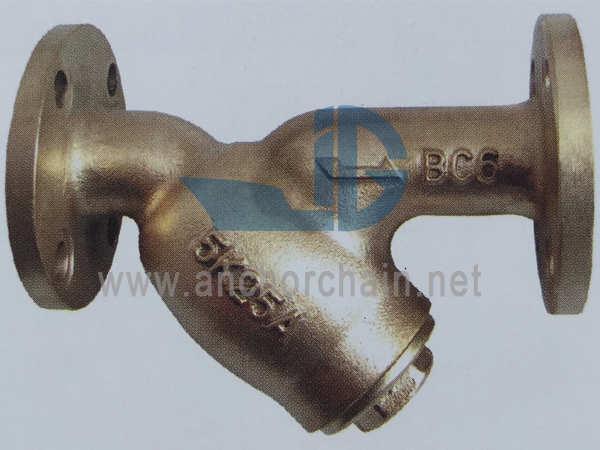

JIS F 7220Q Bronze Y Type Strainer Design Standard: JIS F7220Q-1996 Test Standard: JIS 7200-1996 Hydraulisk testtryk: Krop- 1,05MpaFlangestørrelse i henhold til JIS B2220 - 5K
Marine Bronze Y si JIS F7220Q 5K
Kategori:JIS Marine Si & Filter
Materiale: Bronze
Standarder: JIS F7220Q
Certifikat: CCS, BV, GL, NK, RINA, ABS, DNV, LR
Fob-pris: Få den seneste pris nu
Oprindelsessted: Kina
| DN | d | L | D | C | Hul (n-d) | t | H |
| 20 | 20 | 200 | 85 | 65 | 4-12 | 14 | 127 |
| 25 | 25 | 225 | 95 | 75 | 4-12 | 14 | 155 |
| 32 | 32 | 260 | 115 | 90 | 4-15 | 16 | 164 |
| 40 | 40 | 280 | 120 | 95 | 4-15 | 16 | 180 |
| 50 | 50 | 320 | 130 | 105 | 4-15 | 16 | 208 |
| 65 | 65 | 350 | 155 | 130 | 4-15 | 18 | 253 |
| 80 | 80 | 373 | 180 | 145 | 4-19 | 18 | 268 |
